Rockchip PX30 JLD096 LVDS Display Arm Android Board Motherboards Industrial Board Manufacturer For Advertising Digital Signage Displays
Description of JLD096 Android motherboard
JLD096 Android motherboard product adopts Rockchip PX30 processor,New generation Rockchip quad core 32bit ARM® Cortex-A35,Adopt multi-core ARM® Mali™-G31 GPU. Integrating HD video engine and advanced security technology.Mmaximum frequency 1.4GHZ.
High performance MAIL-A35 GPU, support TE, ASTC, AFBC memory compression technology, compatible with each big mainstream brand game 3d UI, etc..
Adopting 28nm process, Ultra high integration LVDS, MIPI high screen. Support the latest Android 8.1 operation system,with super WEB compatibility. compatible with most portal audio video site;Complete APK compatibility and openness, mature operation SKYPE GAMELOFT QQ MSN OFFICE securities.
| CPU | Quad-core Cortex-A35 (1.4GHz) | GPU | multi-core ARM® Mali™-G31 |
| Video Output | LVDS/MIPI (max 1920x1200) HDMI | OS | Android 8.1/android 10.1/Linux |
| Memory | 1GB DDR3 (max 2GB) | EMMC | 4G NANDFLASH highest support 16G NANDFLASH(EMMC support 32G) |
Touch Screen
| I2C/USB | Display Interface | LVDS,MIPI |
| Serial port | 2 RS232/TTL |
|
|
| Highlight | Android motherboard, ARM Embedded Mainboard,Digital Signage Control Board |
Competitive Advantages of JLD096 Android motherboard
- Ultra-Low Cost: DDR3 RAM and NAND Flash reduce BOM costs for budget projects.
- Compact Design: Smaller PCB (120x85mm) fits space-constrained enclosures.
- Energy Efficiency: 12V/2A power input ideal for battery-powered or portable devices.
- Ruggedness: Operates in extreme temperatures for outdoor/industrial deployments.
- Dual-Band Wi-Fi: Better connectivity than single-band alternatives.

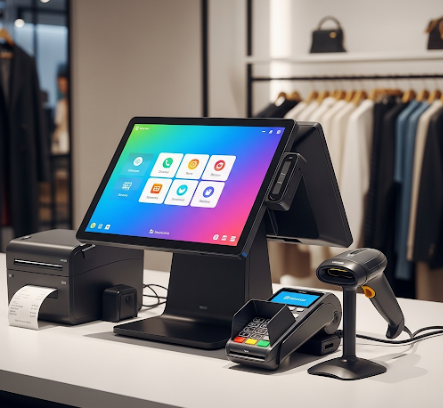

Target Applications of JLD096 Android motherboard
Advantages: Low cost, multi-touch support, USB for payment devices.
Advantages: LVDS/MIPI for simple displays, Android 8.1 for basic media playback.
Advantages: Dual-band Wi-Fi, low power consumption for sensor data aggregation.
- Industrial Control Panels:
Advantages: Wide-temperature operation, compact PCB size (120x85mm).
Advantages: Capacitive touchscreen support, lightweight OS for interactive menus.

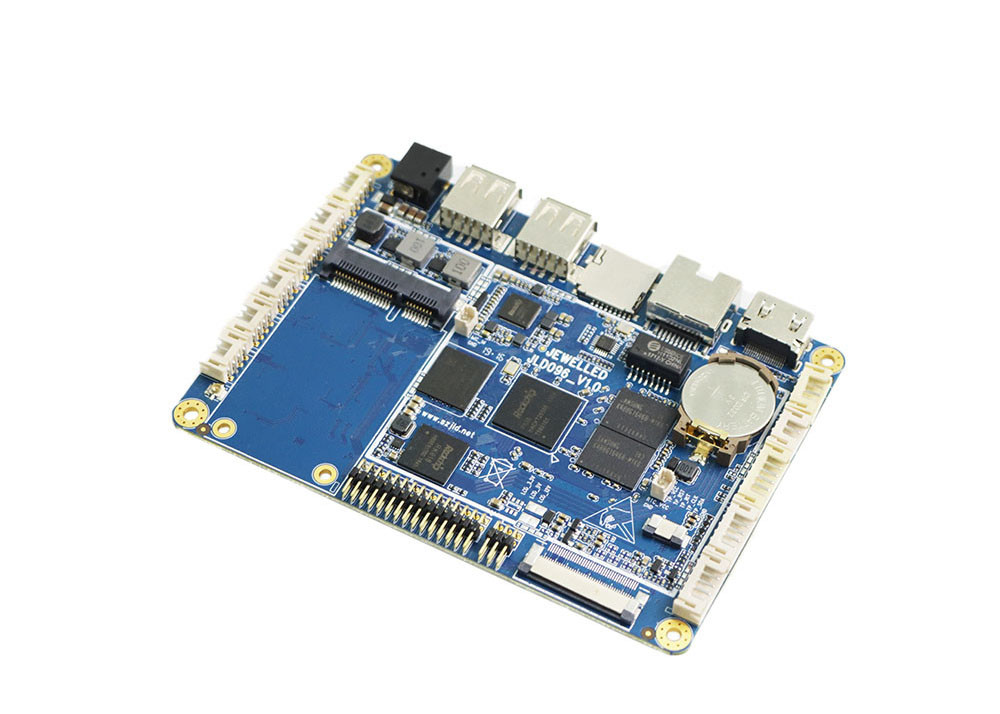

Product interface photos
Main parameters
| CPU | PX30 (Quad-core Cortex-A35, 1.4GHz) – Low-power, entry-level processor for lightweight tasks. |
| GPU | ARM MAIL-T764 graphics processor |
| Memory | 1G DDR3(maxium support 2GB) |
| Flash | 4G NANDFLASH highest support 16G NANDFLASH(EMMC support 32G) |
| Display | support LVDS,MIPI video output highest output definition:1920X1200 |
| Audio Output | stereo |
| Ethernet | support 10MHZ/100MHZ and 2.4G/5G wireless WIFI |
| Wi-Fi | 2.4G WIFI/BT |
| OS | Android 8.1/10.1/Linux Debian |
| TP | I2C/USB |
| Memory card type | TF card |
| USB Interface | USB*3 |
| Serial port | RS232/TTL/RS485*1 |
| RTC | Real time clock |
| Camera | MIPI/USB |
| PCB Size | 120mmX85mm |
| Power supply | DC12V/2A input |
| Temperature | -20-80℃ |
Packing
1. At Buyer's Request
2. Inner, vacuum package
3.Outer, standard export carton
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
